2-L PoA
2-L PoA
Door model available in the following structures
Double door in/out opening structure
Other structures

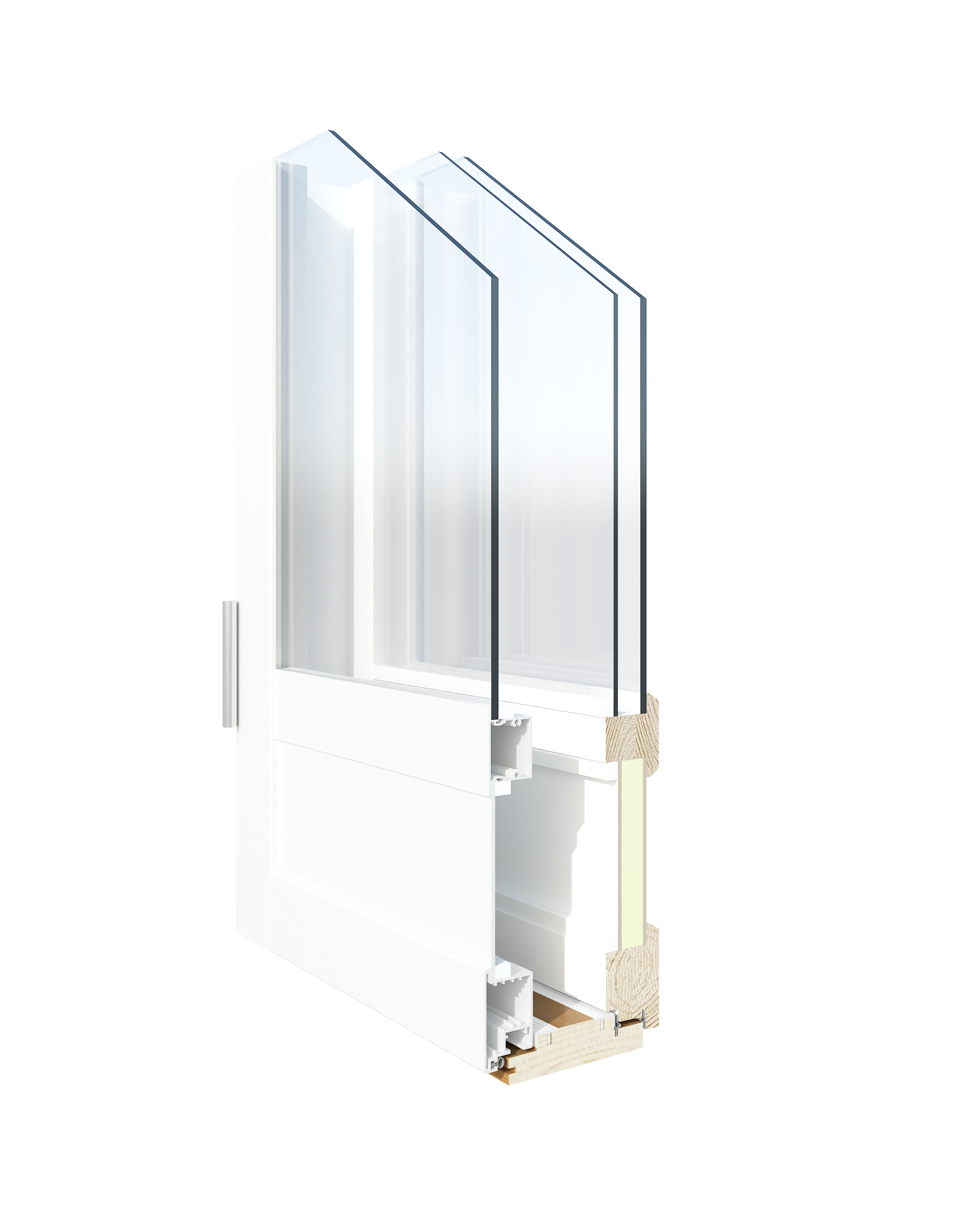

Double door in/out opening structure
Window openings: 12M, 14M, 16M, 18M, fully glazed and optional window height
Technical information
| Door outdoor leaf: | Full aluminum-framed door leaf. Total thickness of door leaf 43mm. Double aluminum sheet metal in solid areas. | ||||||
| Door Inner leaf: | Frame structured door leaf made of lamella glued pine profile. HDF boards in solid areas. Total thickness of door leaf 42mm. | ||||||
| Hinge outdoor leaf:: | Abloy AL-NT130x28 TPKS 3kpl | ||||||
| Hinge inner leaf: | Multihela 110KS Cr 3pcs | ||||||
| Lock outdoor leaf: | Espagnolette FIX896F+ hold-open device FIX150, striker plates | ||||||
| Lock inner leaf: | FIX62R Espagnolette, striker plates FIX62R | ||||||
| Seals outdoor leaf: | Grey, 10mm silicone seal at the door leaf | ||||||
| Seals inner leaf: | 10mm silicone seal at the door leaf and frame | ||||||
| Insulation outdoor leaf: | No insulation | ||||||
| Insulation inner leaf: | 25mm polyurethane insulation | ||||||
| Glazing outdoor leaf: | 6mm flat glass | ||||||
Glazing inner leaf | 2K4-12 Warm Spacer + argon |
Glazing inner leaf M16-M18< : | 2K6/4-10 Warm Spacer + argon |
Frame | Lamella glued, knotless pine frame 42 x 131/170/210mm |
Threshold | Glued, teak colour stained and varnished birch threshold 32 x 124/164/204mm w¬ith two aluminium threshold plates |
|
